Worldwide Leader in the process to manufacture nutritional, blood and drainage bags

valmed is made in Italy

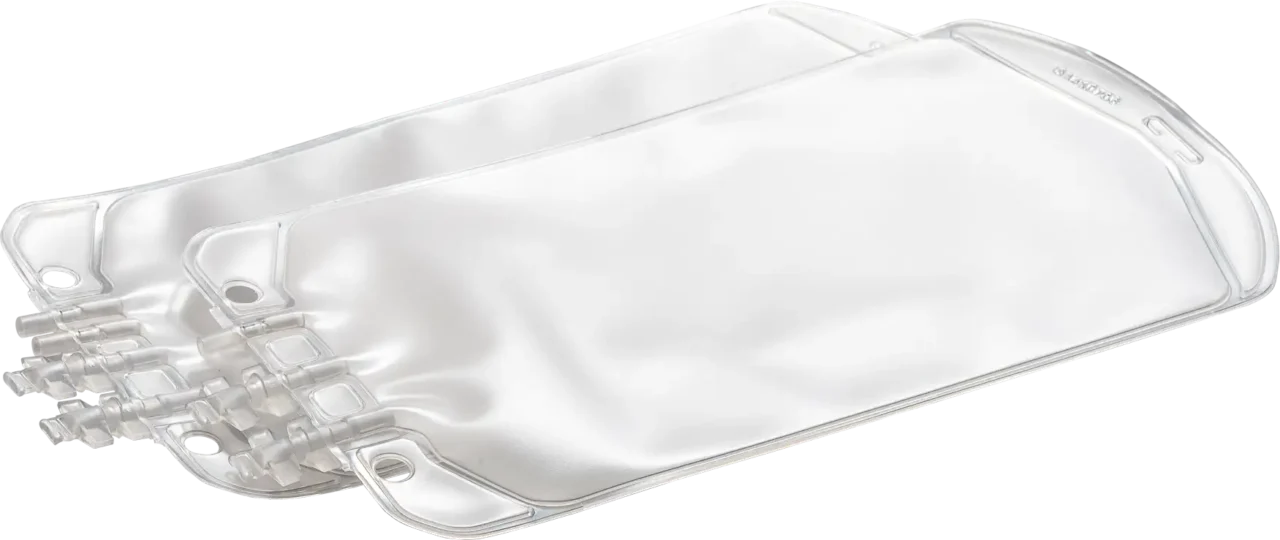

Blood Cryoconservation Bag

1. Availability to manufacture bag in different capacities.
2. Hermetically welded Spike ports.
3. Rated for use in liquid nitrogen.
4. The product is latex-free
5. Different configuration are available, such as: LL connector, infusion site, vial cone
6. The batch and/or code can be engraved on the bag.
7. The barcode can be inserted in packet of the bag.

Features

Blood Cryoconservation Bag is a safe way to preserve blood components when cryopreservation is indicated. This bag is indicated for freezing of blood and blood components, for cryogenic blood preservation and cord blood storage in liquid nitrogen. It is made from polyolefin film, which combines the liquid nitrogen stability with excellent flexibility and puncture resistance.
Polyolefin has low water vapor transmission and good gas barrier properties, helping to preserve the integrity of blood components.

These bags are used for 2 applications:
-Storage of platelets: this is performed at 37°C.
-Storage of stem cells: short term at room temperature or 37°C and Cryogenic storage at -196°C.



1. Availability to manufacture bag in different capacities.
2. Hermetically welded Spike ports.
3. Rated for use in liquid nitrogen.
4. The product is latex-free
5. Different configuration are available, such as: LL connector, infusion site, vial cone
6. The batch and/or code can be engraved on the bag.
7. The barcode can be inserted in packet of the bag.



Structure of bag

Polyolefin films This special material has mono layer structure and combine very high oxygen and carbon dioxide transmission rates with excellent cold storage properties down to -196˚C. At this temperature the polyolefin film remains more flexible compared to EVA materials; which makes it the preferred film for such freezing application.
Biocompatible according to ISO 10993.

Tubes Monolayer or coextruded multilayer tubing with polyolefin elastomer blend outside layer. This tube is designed specifically for application like cell culturing, cold storage and blood components. Biocompatible according to ISO 10993.

Spike ports EVA spike port is designed for main application areas including cryogenic storage. It is characterized by a perforable internal membrane and besides the spike is radio frequency welded on the top. Biocompatible according to ISO 10993.
